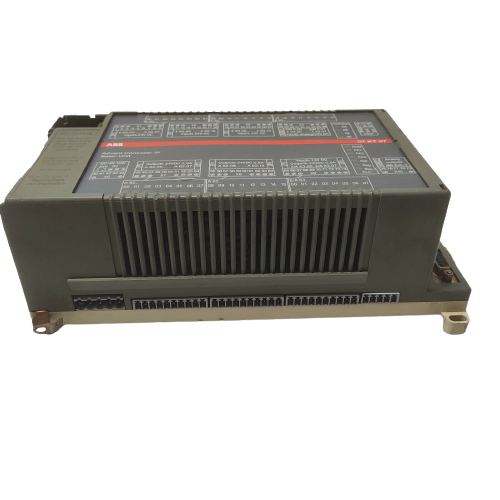

ABB 07KT97 GJR5253000R0200 PLC Central unit, 24V DC

General Information

Product ID: GJR5253000R0200
ABB Type Designation: 07KT97
Catalog Description: 07KT97 PLC Central unit, 24V DC

Additional Information

ABB Type Designation: 07KT97
ABS Certificate: 1SAA960000-0101
Ambient Air Temperature:
- Operation: 0 … +55 °C
- Storage: -25 … +75 °C
Analog Inputs:
- 8 channels
- Range: 0 … +5V, -5 … +5V, 10 bit + sign, 0 … +10V, -10 … +10V, 11 bit + sign, 0 … 20mA, 4 … 20mA, PT100 (2 or 3 wire), 12 bit, bipolar
- Analog inputs are also usable as digital inputs
Analog Outputs:
- 4 channels
- Range: -10 … +10V, 11 bit + sign, 0 … 20mA, 12 bit
Core Credit: 0.00
Country of Origin: Germany (DE)
CS31-Bus: 1
CSA Certificate: 1SAA960000-1102
Customs Tariff Number: 85371091
Data Sheet, Technical Information: 2CDC121008D0202
Declaration of Conformity – CE: 1SAD938504-0047
eClass: 27-24-22-07
Environmental Information: 1SAA960001-2401
Frame Size: Spare Parts
GL Certificate: 1SAA960001-0403
Gross Volume: 6.142 dm³
Gross Weight: 5.71 kg
Instructions and Manuals: 2CDC121008D0202
Invoice Description: 07KT97 PLC Central unit, 24V DC
LR Certificate: 1SAA960000-0502
Made To Order: No
Maximum Hardware Counter Input Frequency: 50 kHz
Maximum Number of Analog I/Os: 232 AI, 228 AO
Maximum Number of Digital I/Os: 1024
Medium Description: 07KT97
Memory Size User Data: 256 kB
Memory Size User Program: 480 kB
Memory Type User Data: Flash EPROM
Memory Type User Program: Flash EPROM, non-volatile RAM, SMC
Minimum Order Quantity: 1 piece
Number of Analog Configurable I/Os: 0
Number of Digital Configurable I/Os: 8
Number of Digital Inputs DC 24V: 24
Number of Digital Outputs DC 24V: 16
Number of Hardware Counters: 2
Object Classification Code: K
Order Multiple: 1 piece
Output Current: 0.5 A
Output Voltage (Uout): 24 V DC
Package Level 1 Gross Weight: 1.05 kg
Package Level 1 Units: 1 case
Parallel Extension: 1
Part Type: New
Primary Voltage: 24 V
Product Depth: 85 mm
Product Main Type: 07KT97
Product Name: 07KT97 PLC Central unit, 24V DC
Product Net Weight: 5.71 kg
Product Type: Spare Parts
Programming Software: AC1131
Quote Only: No
Real-time Clock: Yes
RMRS Certificate: 1SAA960000-0701
RoHS Information: 1SAA960003-4401
RoHS Status: No declaration needed
Selling Unit of Measure: piece
Serial Port 1 Type: RS232 / Programming, Modbus Master or slave
Serial Port 2 Type: RS232 / Modbus Master or slave, ASCII
Short Description: 07KT97: AC31, Programmable Logic Controller 480KB
Speed for 1000 instructions (65% Logic, 35% Word): 0.3 ms
Stocked At (Warehouses):
- Menden, Germany
- Ladenburg, Germany
Terminal Type: Screw Terminals, Pluggable
UL Certificate: 1SAA960000-1601
UNSPSC: 32151705
WEEE B2C / B2B: Business To Business
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
