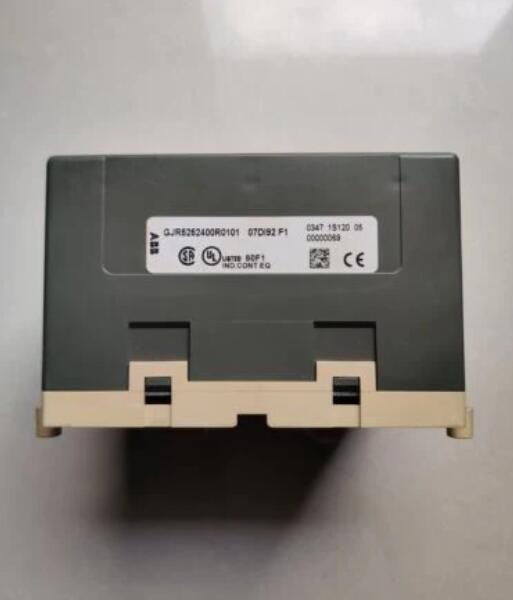

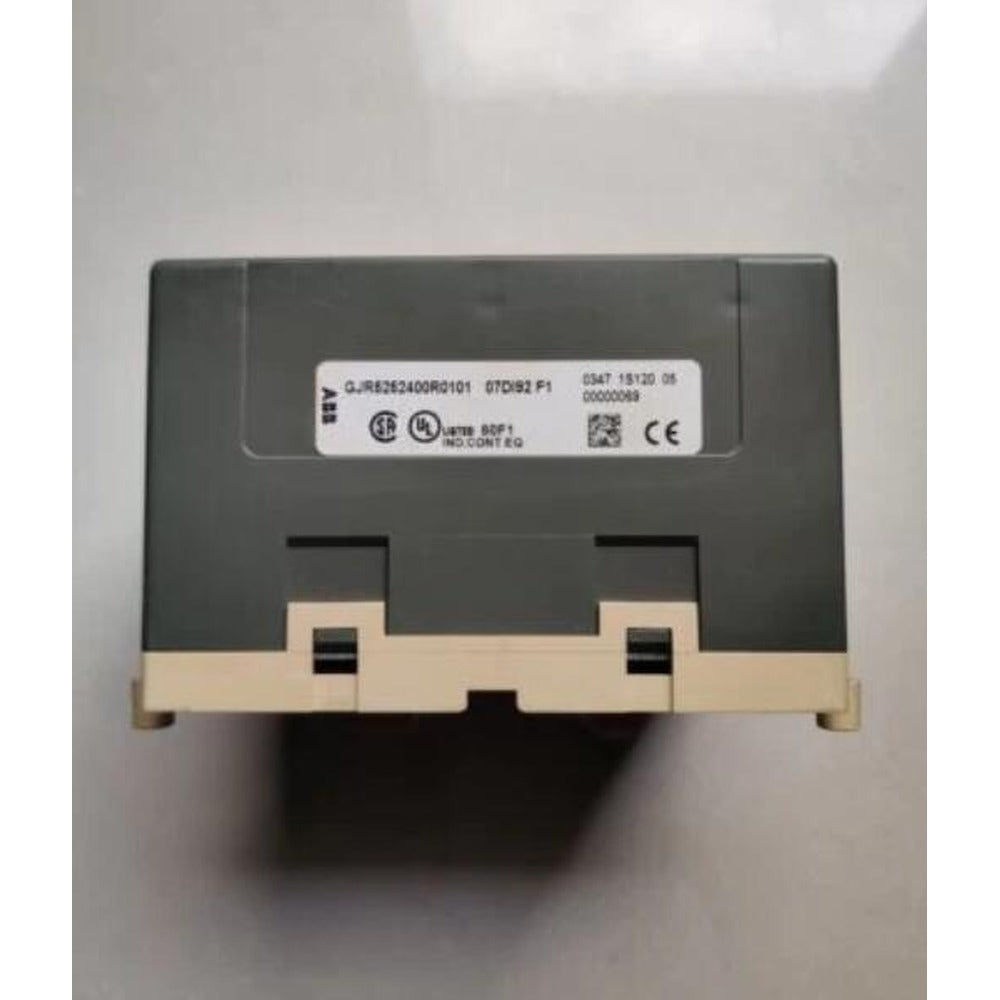

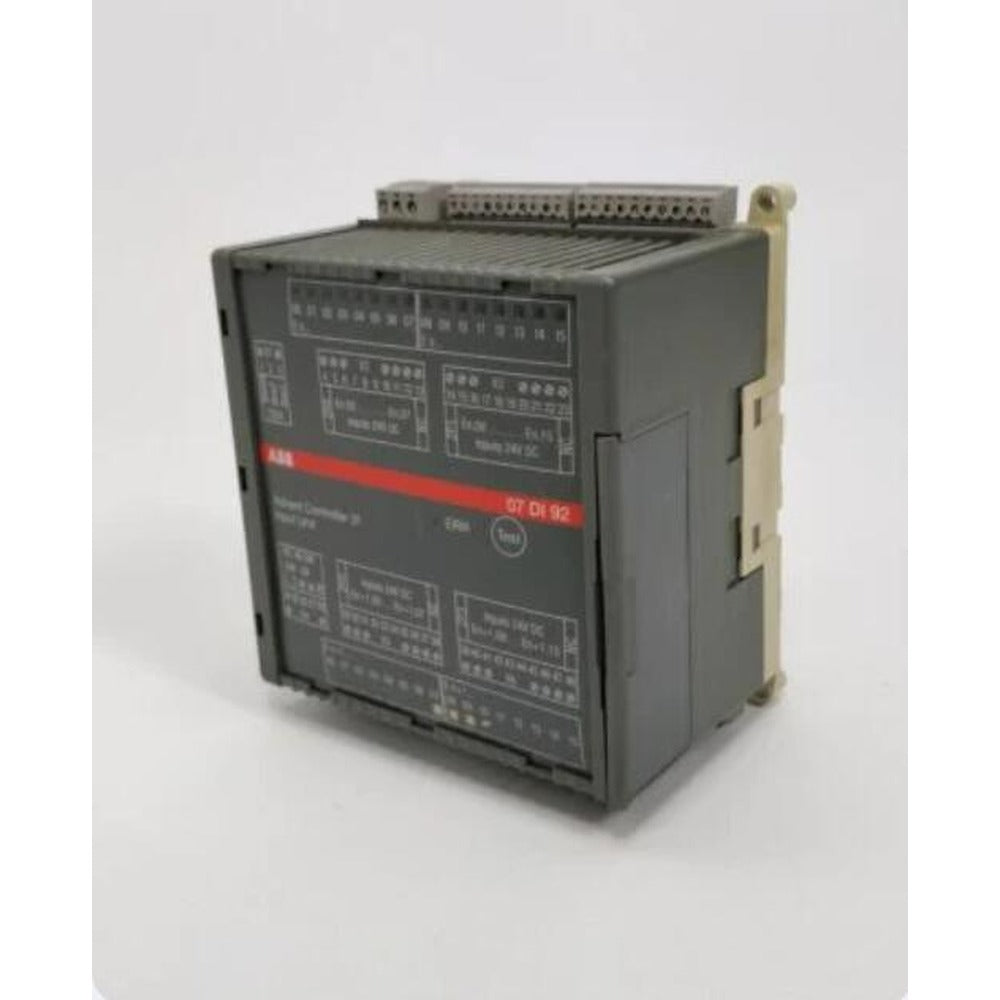

ABB 07DI92 Digital I/O module 100% Original Packaging in Stock

The ABB 07DI92 is a digital I/O module that is part of the ABB AC31 Series 90 distributed automation system. It can be used to monitor up to 32 digital inputs, such as switches, sensors, and contactors. The module has a 24 VDC power supply and can be mounted on a DIN rail.

General Information:

Extended Product Type: 07DI92
Product ID: GJR5252400R0101
ABB Type Designation: 07DI92
EAN (European Article Number): 4013614267659
Catalog Description: 07DI92: AC31, Digital I/O module 32DI
Long Description: 07DI92: AC31, Digital I/O module 32DI 24VDC, DI: 24VDC, 1-wire

Additional Information:

ABB Type Designation: 07DI92
ABS Certificate: 1SAA960000-0102
Ambient Air Temperature:
- Operation: 0 … +55 °C
- Storage: -25 … +75 °C
Cable Cross-Section: 0.08 … 1.5 mm²
CN8 (Customs Nomenclature): 85389091
Country of Origin: Germany (DE), Spain (ES)
CS31-Bus: 1
CSA Certificate: 1SAA960000-1102
Customs Tariff Number: 85389091
Data Sheet, Technical Information: 2CDC122007D0201
Declaration of Conformity – CE: 1SAD938505-0047
Degree of Protection: IP20
DNV Certificate: 1SAA960000-0304
EAN: 4013614267659
eClass: 27-24-22-04
Environmental Information: 1SAA960001-2401
Fieldbus Interface Type: CS31 Slave
Frame Size: Undefined
Gross Weight: 0.59 kg
I/O Option: Bus module with Onboard IO – 32DI
Instructions and Manuals: 2CDC120059M0202
Invoice Description: 07DI92: AC31, Digital I/O module 32DI
LR Certificate: 1SAA960000-0502
Made To Order: No
Maximum Operating Altitude Permissible: 2000 m
Minimum Order Quantity: 1 piece
Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Number of Analog Configurable I/Os: 0
Number of Digital Inputs DC 24V: 32
Order Multiple: 1 piece
Primary Voltage: 24 V
Product Depth: 85 mm
Product Main Type: 07DI92
Product Name: Distributed Automation I/O
Product Net Depth / Length: 85 mm
Product Net Height: 140 mm
Product Net Weight: 0.59 kg
Product Net Width: 120 mm
Product Type: PLC-AC31-90
Quote Only: No
RINA Certificate: 1SAA960000-0802
RMRS Certificate: 1SAA960000-0702
RoHS Information: 1SAA960005-4401
RoHS Status: No declaration needed
Selling Unit of Measure: piece
Serial Port 1 Type: RS-485, CS31
Short Description: 07DI92: AC31, Digital I/O module 32DI
Stocked At (Warehouses): Menden, Germany; Singapore, Singapore
Supply Voltage: 24 V DC
Terminal Type: Screw Terminals, Pluggable
UL Certificate: 1SAA960000-1602
UNSPSC (United Nations Standard Products and Services Code): 32151705
WEEE B2C / B2B (Waste Electrical and Electronic Equipment): Business To Business
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
