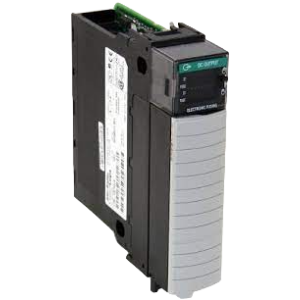

Output Module in Industrial Automation

An output module in industrial automation refers to a device or circuit that converts electrical signals (digital or analog) from a control unit into forms that control external devices or processes. These external devices can range from motors and valves to relays and more complex systems.

Key Functions of an Output Module

• Signal Conversion: Adapts control signals to match the requirements of the output device, often involving voltage amplification, current boosting, or switching.
• Isolation: Provides electrical isolation to protect the control system from voltage spikes or disturbances.
• Protection: Ensures safety and reliability by including overcurrent, short-circuit, and thermal protection.
• Status Indication: Often features LED indicators to show the output’s status (on/off, active/inactive).

Types of Output Modules

• Relay Output Modules: Use electromechanical relays to switch high voltages and currents. Ideal for AC and DC loads.
• Transistor Output Modules: Use transistors (e.g., BJT, MOSFET, IGBT) for fast switching of DC loads. Suitable for high-speed switching and frequent use.
• Analog Output Modules: Provide continuous voltage or current signals (e.g., 0-10V, 4-20mA) to control devices like variable-speed drives, valves, and actuators.
• Triac Output Modules: Use Triacs for switching AC loads, commonly used in lighting, heating, and other AC-powered devices.

Technical Specifications

• Number of Channels: 8, 16, or 32 (Independent outputs)
• Output Type: Sinking (NPN), Sourcing (PNP), Relay
• Output Voltage: 24V DC, 120V AC, 230V AC
• Output Current: 0.5A, 1A, 2A per channel
• Switching Frequency: 100Hz, 1kHz
• Isolation Voltage: 500V AC, 1000V AC
• Response Time: <1ms, <10ms
• Operating Temperature: -10°C to +60°C
• Mounting: DIN rail mounting, Panel mounting
• Connector Type: Screw terminals, Spring clamp terminals

Example Application

In a packaging machine, a digital output module controls solenoid valves that actuate pneumatic cylinders. The PLC sends signals to the output module, which switches the valves on/off to control cylinder movement and product positioning.

Important Considerations

• Load Requirements: The output module must handle the connected load’s voltage and current.
• Switching Speed: The switching speed should be appropriate for the application.
• Isolation: Proper isolation is essential for system protection.
• Environmental Conditions: Temperature, humidity, and other environmental factors must be considered when selecting the module.
