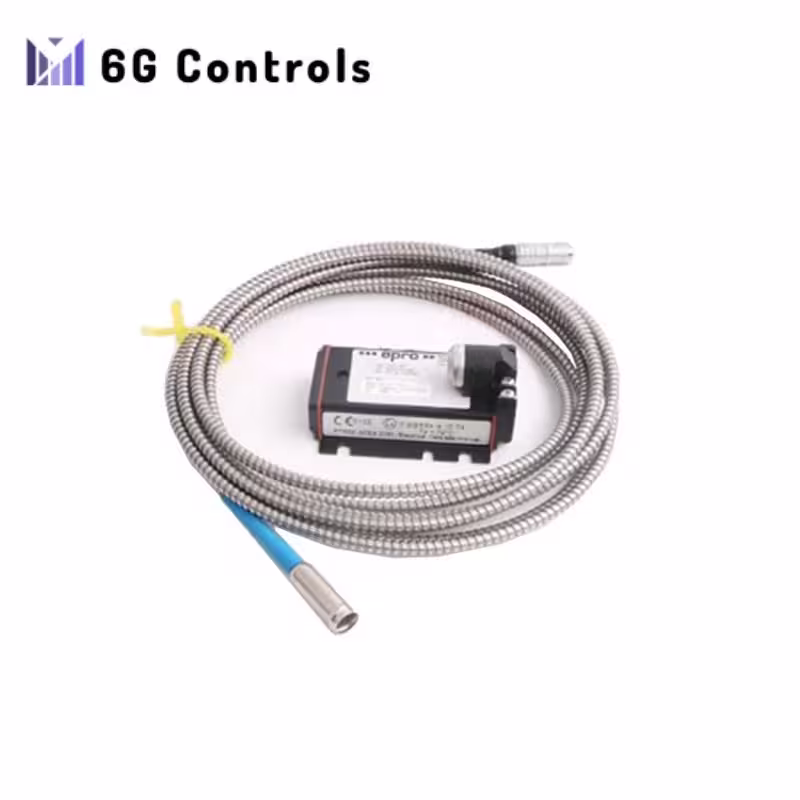

Eddy Current Signal Converter

Eddy Current Signal Converters

Eddy current signal converters play a crucial role in non-destructive testing (NDT) and material characterization. These devices operate using electromagnetic induction principles. A changing magnetic field induces eddy currents within conductive materials. These eddy currents create their own magnetic fields, which the converter detects. Fluctuations in material properties, such as conductivity, permeability, or flaws, alter the eddy currents and the corresponding detected signal.

Key Functions

• Signal Generation: The converter generates alternating current (AC) to drive the eddy current probe.
• Signal Reception: It receives altered signals from the probe, revealing information about the inspected material.
• Signal Processing: The converter amplifies, filters, and processes signals to extract meaningful data.
• Signal Conversion: It converts processed signals into usable formats, like analog voltage or digital signals, for analysis.

Technical Specifications

• Frequency Range: Defines the operating frequency for different materials and applications.
• Gain: Amplifies signals, enabling detection of smaller flaws or material changes.
• Filtering: Eliminates unwanted noise or interference, ensuring cleaner signals.
• Output Impedance: Matches connected device input impedance for optimal performance.
• Linearity: Ensures the output signal correlates directly with material property changes.
• Signal-to-Noise Ratio (SNR): A higher SNR ensures better signal clarity and accuracy.
• Power Requirements: Specifies voltage and current necessary for converter operation.
• Operating Temperature Range: Defines the temperature range where the converter functions reliably.
• Size and Weight: Indicates the physical dimensions and portability of the device.
• Durability: Ensures reliable performance in harsh environments or under mechanical stress.

Applications

• Flaw Detection: Identifies cracks, voids, and defects in metals or conductive materials.
• Material Sorting: Differentiates metals and alloys based on conductivity and permeability.
• Thickness Measurement: Measures coating or thin material thickness accurately.
• Conductivity Measurement: Assesses electrical conductivity of various materials.
• Heat Treatment Monitoring: Evaluates heat treatment effectiveness to ensure quality control.
