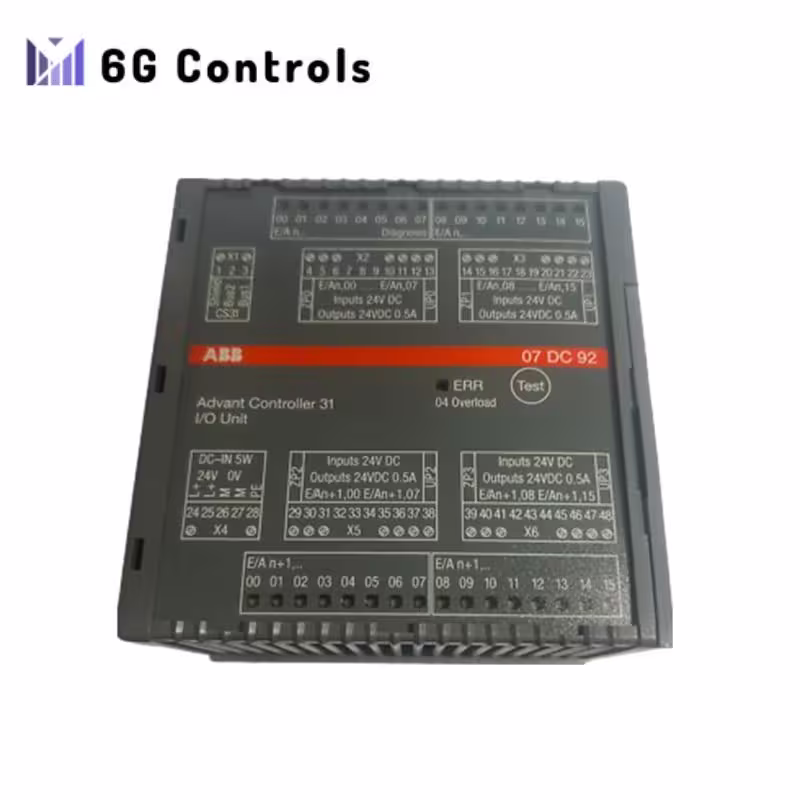

Digital Input/Output (I/O) Module

A digital input/output (I/O) module allows a computer or control system to interact with external devices. It receives digital signals (inputs) and sends digital signals (outputs).

Understanding Digital Signals

Digital signals have only two possible states: on or off, true or false. Think of a light switch—it’s either on or off with no in-between.

Inputs and Outputs

Inputs allow the system to receive information from sensors. For example, a sensor detects if a door is open (1) or closed (0), sending that data to the system.

Outputs control external devices. For example, a system might send a signal (1) to turn on a light or (0) to turn it off.

Applications of Digital I/O Modules

Digital I/O modules are crucial in various applications, such as:

• Industrial Automation: Control machines, monitor processes, and automate tasks.
• Robotics: Receive sensor data and control actuators.
• Building Management Systems: Manage lighting, heating, and security systems.
• Consumer Electronics: Interact with buttons, switches, and LEDs.

Key Features of Digital I/O Modules

• Number of Inputs and Outputs: Modules offer different numbers of channels.
• Voltage and Current Ratings: Each module is designed to handle specific voltage and current levels.
• Isolation: Some modules protect systems from voltage spikes or noise with electrical isolation.
• Communication Interface: Modules connect to the control system using various protocols, such as Ethernet or USB.

Examples of Digital I/O Modules

• Programmable Logic Controllers (PLCs): Widely used in industrial automation, often with built-in digital I/O capabilities.
• Microcontroller Development Boards: These boards provide digital I/O pins to interface with sensors and actuators.
• Data Acquisition Systems (DAQs): Collect data from various sources, including digital inputs.
