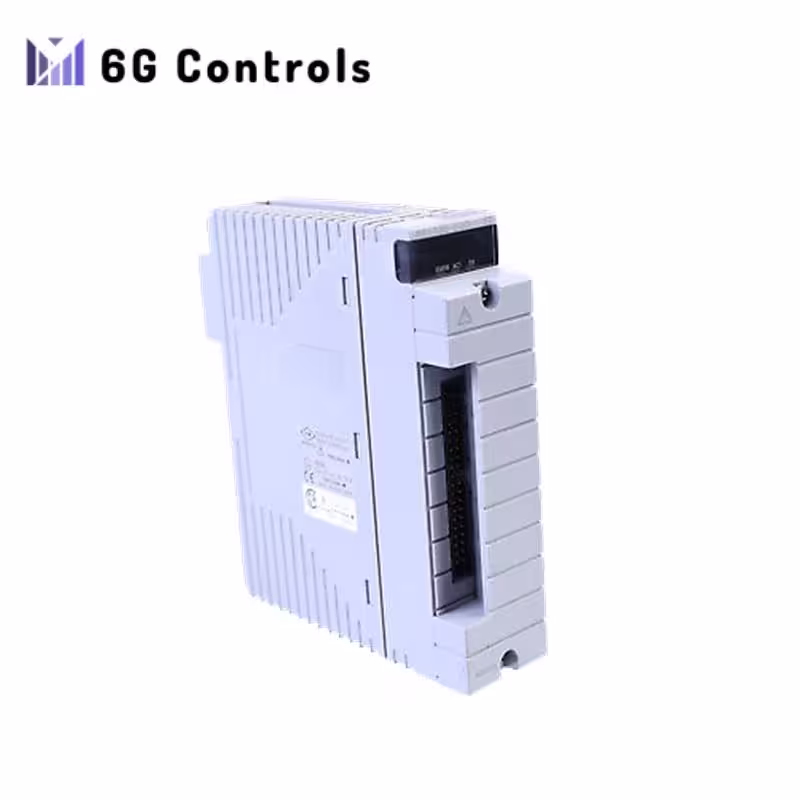

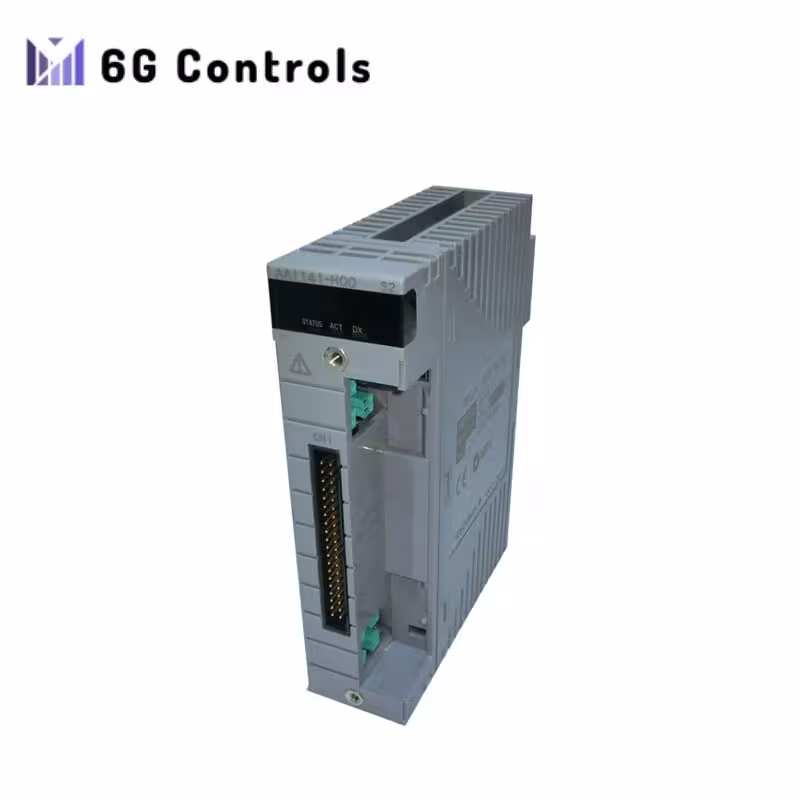

Analog Intput Module

Overview

Analog input modules are critical components in industrial automation systems. They convert analog signals from sensors into digital signals for processing by PLCs or other control systems. These modules are essential for monitoring physical parameters like temperature, pressure, flow, and level.

Key Features

• Signal Conversion: Converts analog signals (e.g., 0-10V, 4-20mA) into digital signals.
• High Accuracy: Delivers precise measurements with minimal error.
• Multiple Channels: Supports various input channels for versatile monitoring.
• Isolation: Ensures electrical isolation to prevent interference between input channels and control systems.
• Robust Design: Built to endure harsh industrial environments.

Functions

• Signal Conditioning: Includes circuits to filter noise, amplify weak signals, and isolate inputs from electrical interference.
• Analog-to-Digital Conversion (ADC): Converts the analog voltage or current to a digital value, with the ADC’s resolution affecting the accuracy.
• Input Ranges: Supports different input types, such as voltage (0-10V, ±10V), current (4-20mA), and temperature (RTD or thermocouples).
• Isolation: Many modules offer electrical isolation to protect the control system from high voltages or ground loops.
• Communication: Transmits the digital data to a PLC or computer via a communication protocol.

Applications

• Process Control: Monitors and controls processes in industries like chemical, pharmaceutical, and food processing.
• Building Automation: Tracks environmental parameters like temperature and humidity in HVAC systems.
• Energy Management: Monitors energy consumption and performance in power plants and renewable energy systems.
• Data Acquisition: Collects data from sensors for analysis and reporting in various industrial and research settings.
