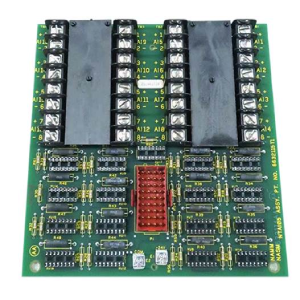

Analog Input Module

An analog input module converts continuous analog signals from sensors or other devices into digital signals that can be processed by a computer or programmable logic controller (PLC). These modules are widely used in industrial automation, data acquisition, and process control applications to monitor physical parameters such as temperature, pressure, flow rate, and voltage.

Key Features and Specifications

• Number of Channels: Defines how many analog inputs the module supports.
• Input Range: Specifies the minimum and maximum voltage or current that can be measured by each channel. Typical ranges include:
  • 0-5V, 0-10V
  • -10V to +10V
  • 4-20mA, 0-20mA
• Resolution: The smallest detectable change in the analog input, usually expressed in bits. Higher resolution allows for greater precision.
• Sampling Rate: The frequency at which analog signals are converted into digital values. Higher rates allow for faster data acquisition.
• Accuracy: The degree to which the measured value conforms to its actual (true) value.
• Isolation: Ensures electrical separation between input and output circuits to reduce noise and prevent ground loops.
• Signal Conditioning: In-built circuitry to filter, amplify, or attenuate input signals for better data quality.
• Communication Interface: Defines how the module communicates with other devices (e.g., RS-232, RS-485, Ethernet, or fieldbus).

Applications

• Process Control: Used in industrial applications like monitoring temperature in a furnace or controlling flow rates in pipelines.
• Data Acquisition: Collecting sensor data for analysis, visualization, and monitoring.
• Building Automation: Automating HVAC systems, lighting, and other building functions based on real-time sensor data.
• Test and Measurement: Acquiring data from testing equipment for subsequent analysis and validation.
